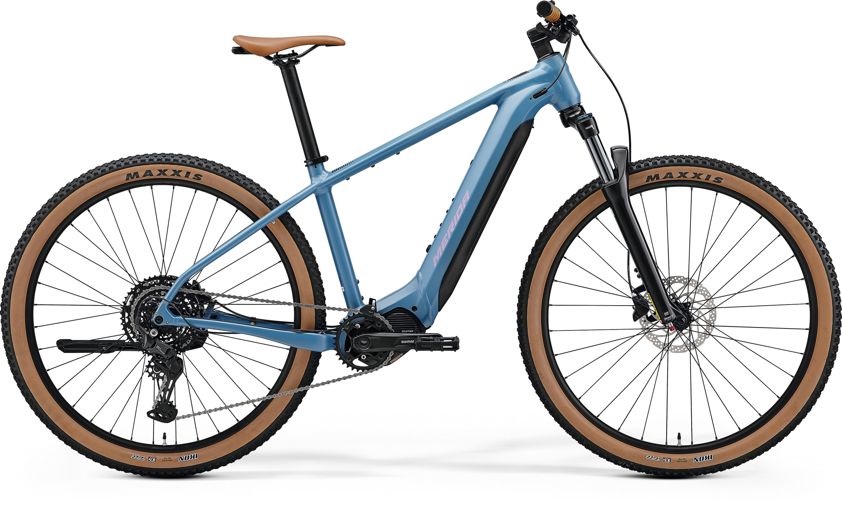

- ebig nine 400 - silk dove blue (blue) - my26
- The geometry of the eBig Nine follows a simple principle; as sporty as possible, as comfortable as necessary. The eBig Nine 400 offers the power to do more of what matters. . More fun when you're riding off-road, with a powerful 85NM Shimano EP6 drive unit to help you up the hills. More time in the saddle with a 630 Wh battery that'll keep you going for miles. More control, thanks to a SR Suntour suspension fork, chunky tyres and powerful Shimano brakes. More of everything except unnecessary weight, thanks to a high-quality aluminium frame that's also got a lifetime warranty.
- Frame: Lite III - Hydroformed 6066 aluminium, integrated battery, internal cable routing, Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Mounts for mudguards and kickstand. Max. tyre size 29x2.25 with mudguards, 29x2.35 without
- Fork: SR Suntour XCM34-Boost LO-R DS; 100mm travel; Tapered; 44mm fork offset
- Headset: Merida-8157
- Stem: Merida Expert eTRII; material: aluminium; 35mm diameter; 0 degree rise; GoPro & Supernova mount; length: 50mm
- Handlebar: Merida Expert TR II; 760mm wide; 18mm rise
- Grip: Merida Comp TK
- Brake Type: Hydraulic Disc
- Brake Calipers: Front: Shimano MT-200; 2 piston with Shimano RT30; 180mm Rear: Shimano MT-200; 2 piston with Shimano RTEM300; 180mm
- Tyres: Front: Maxxis Ikon; 29x2.2; kevlar bead Rear: Maxxis Ikon; 29x2.2; kevlar bead
- Wheel Size: 29
- Wheels: Rims: Merida Comp CC II; 25mm inner rim width; material: aluminium Spokes: Black stainless ; black nipples Front Hub: Shimano TC500-B; 110x15mm; 32 spoke; Centerlock Rear Hub: Shimano TC500-HM-B; 148x12mm; 36 spoke; Centerlock
- Speeds: 10
- Rear Derailleur: Shimano CUES U6000 ; GS
- Shift Levers: Rear: Shimano CUES U6000-10
- Chain: Shimano LG500
- Cassette: Shimano LG300; 11-48 teeth; 10 Speed
- Chainset: Shimano CRE70-B; 34 tooth chainset ; Crank: Shimano FC-EM600; 165mm
- Bottom Bracket: included
- Pedals: VP VPE-537
- Saddle: Merida Comp SL; V-mount; incl. Merida minitool
- Seat Post: Merida Expert CC; material: aluminium; 34.9mm diameter; in-line
- Motor: Shimano EN806; 630Wh, Shimano EP6; 85Nm
- Battery Capacity: 630Wh
- eBike Display: Shimano SC-EN500A
