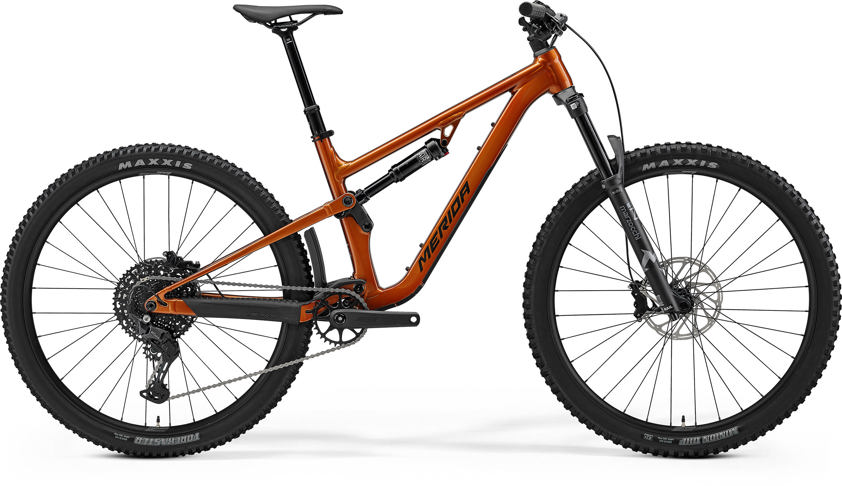

- The One-Forty 400 brings an unheard of level of climbing and descending performance into a high-value package built around our test and award-winning aluminium frame. It's got exactly the same ground-breaking geometry as its more expensive brethren, just paired with kit that delivers the performance you need, without the price tag. Dropper posts on all models, a wide-range 11-speed Shimano drivetrain and no-nonsense suspension from Marzocchi get the job done without fuss.
- Frame: Lite Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5
- Rear Shock: Marzocchi Bomber inline
- Fork: Marzocchi Z2; Air; 150 mm travel; Tapered; 44mm fork offset; 29x2.6 max. tyre size
- Headset: Acros ICR Merida External neck; Upper and lower IPS sealing
- Stem: Merida Comp TR; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm
- Handlebar: Merida Comp TR; material: aluminium; 780mm wide; 20mm rise
- Grip: Merida Comp TR
- Brake Type: Hydraulic Disc
- Brake Calipers: Front: SRAM DB4; 4 piston with SRAM CenterLine; 200mm Rear: SRAM DB4; 4 piston with SRAM CenterLine; 200mm
- Tyres: Front: Maxxis Minion DHF; 29x2.5; wired Rear: Maxxis Forekaster; 29x2.4; wired
- Wheel Size: 29
- Wheels: Rims: Merida Comp TR II; 28mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included); front 29; rear 27.5 Spokes: Black stainless w/black nipples Front Hub: Shimano TC500-B; 110x15mm; 32 Spoke; Centerlock Rear Hub: Shimano TC500-HM-B; 148x12mm; 32 Spoke; Centerlock
- Speeds: 11
- Rear Derailleur: Shimano CUES U6000; Shadow Plus
- Shift Levers: Rear: Shimano CUES U6000
- Chain: KMC xGlide
- Cassette: SunRace 10-50t CS-UX400 EA5; 10-50 teeth; 11 speed; Linkglide
- Chainset: Merida Expert TR II; 32 tooth chainset; Crank length: 170mm
- Bottom Bracket: Samox BSA 24mm EB2401
- Pedals: Not included
- Saddle: Merida Comp SL; 25% recycled material; V-mount; incl. Merida minitool
- Seat Post: Merida Expert TR II; 34.9mm diameter; in-line; (XShort-Short) - 150mm, Mid - 170mm, Long - 200mm, XLong - 230mm seat post travel
