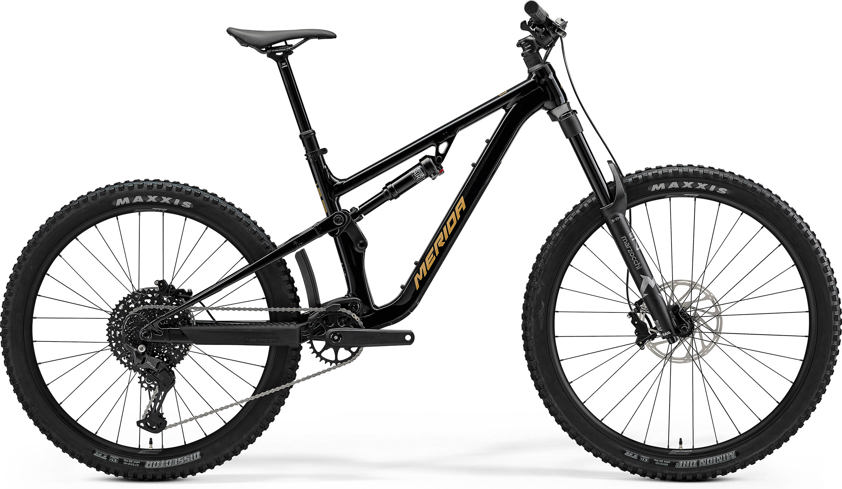

- Our entry-level One-Sixty keeps the price low but the performance high, because we use suspension from legendary brand Marzocchi, super grippy rubber from Continental and Shimano's durable Deore drivetrain. Add in our progressive geometry, the option of mixed 29/27.5 or full 29 wheels and award winning FAST kinematic suspension and you can race, rip and rally any enduro trail you fancy, even if you're not flush with cash.
- Frame: Lite III Aluminium, Next Generation enduro geometry, internal cable routing, long seat post insert depth. Boost axles standard, threaded BB, trail mount and bottle bosses, flip chip for mullet or 29er. max tyre size - 2.5
- Rear Shock: Marzocchi Bomber inline; lockout
- Fork: Marzocchi Z1; Air; 170 mm travel; Tapered; 44mm fork offset; 29x2.6 max. tyre size
- Headset: Acros ICR Merida External neck; Upper and lower IPS sealing
- Stem: Merida Comp TR; material: aluminium; 35 mm diameter; 0 degree rise; Length: 40mm
- Handlebar: Merida Comp TR II; material: aluminium; 780mm wide; 35mm rise
- Grip: Merida Comp TR
- Brake Type: Hydraulic Disc
- Brake Calipers: Front: SRAM DB4; 4 piston with SRAM CenterLine; 200mm Rear: SRAM DB4; 4 piston with SRAM CenterLine; 200mm
- Tyres: Front: Maxxis Minion DHF; 29x2.5; EXO wired; tubeless ready Rear: Maxxis Dissector; (XShort-Mid) - 27.5x2.4, (Long-XLong) - 29x2.4; EXO wired; tubeless ready
- Wheel Size: 29 / 27.5
- Wheels: Rims: Merida Comp TR II; 28mm inner rim width; material: aluminium; Tubeless ready (Stans 30mm tubeless tape installed and valves not included); rear 27.5 up to Size M / L & XL rear 29 Spokes: Double Butted Black stainless w/black nipples Front Hub: Shimano TC500-B; 110x15mm; 32 Spoke; Centerlock Rear Hub: Shimano TC500-HM-B; 148x12mm; 32 Spoke; Centerlock
- Speeds: 11
- Rear Derailleur: Shimano CUES U6000; GS
- Shift Levers: Rear: Shimano CUES U6000
- Chain: KMC xGlide
- Cassette: SunRace 10-50t ZX11; CS-UX700 EA5; 10-50 teeth; 11 speed; Linkglide
- Chainset: Merida Expert TR II; 32 tooth chainset; Crank length: 165mm
- Bottom Bracket: Samox BSA 24mm EB2401
- Pedals: Not included
- Saddle: Merida Comp SL; 25% recycled material; V-mount
- Seat Post: Merida Expert TR II; 34.9mm diameter; in-line; (XShort-Short) - 150mm, Mid - 170mm, Long - 200mm, XLong - 230mm seat post travel
