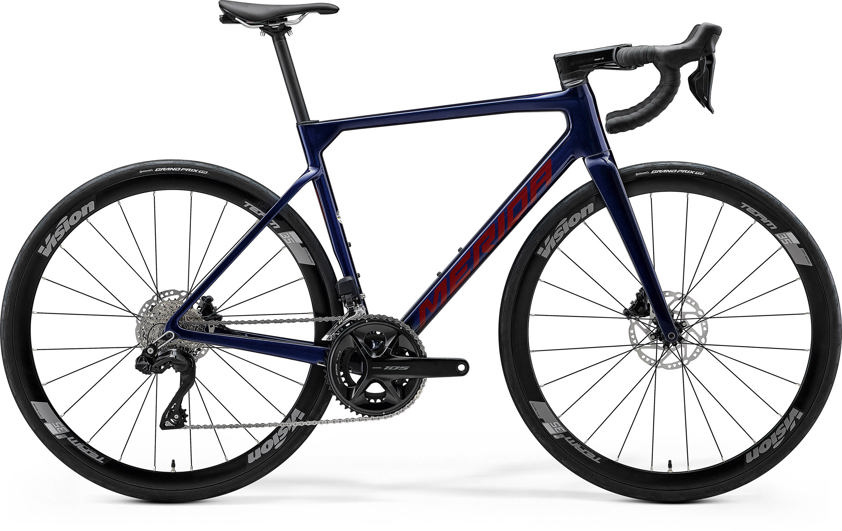

- scultura 5000 - starfield purple (red) - my26
- The Scultura is the go to all-rounder, now in its fifth iteration with improved aerodynamics thanks to shared learnings from the award-winning Reacto aero bike. Yet, it remains true to its lightweight, agility and rider comfort focus demonstrating outstanding compliance to keep the body fresh for the final sprint or ascent. When it comes to final efforts, the geometry is World Tour, winning stages of the Vuelta and Tour even before it was officially launched helping prove its whippet-like acceleration and class-leading climbing pedigree.
- Frame: CF3 V carbon, race geometry. Internal cable routing, 142 x 12mm axle standard, flat mount rear brakes with Disc Cooler, Pressfit 86.5 BB standard, 1 1/2 to 1 1/4 headtube. Max tyre size - 30c
- Fork: Scultura CF3 Disc; material: carbon; 700x30C max. tyre size
- Headset: FSA ACR
- Stem: FSA SMR-II; material: aluminium; -10 ; Length: (XXXS-XS) - 90mm, S - 100mm, (M-L) - 110mm, XL - 120mm
- Handlebar: Merida Expert SLII; material: aluminium; (XXXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide
- Grip: Merida Road Expert
- Brake Type: Hydraulic Disc
- Brake Lever: Shimano 105
- Brake Calipers: Front: Shimano 105; Hydraulic disc with Shimano RT64; 160mm Rear: Shimano 105; Hydraulic disc with Shimano RT64; 160mm
- Tyres: Front: Continental Grand Prix TR; 700x28C; kevlar bead; tubeless ready Rear: Continental Grand Prix TR; 700x28C; kevlar bead; tubeless ready
- Wheel Size: 700c
- Wheels: Rims: Vision Team 35 Clincher Disc Centerlock; 19mm inner rim width; 35mm rim depth; material: aluminium; Tubeless tape ready Spokes: Part of wheelset - Vision Team 35 Clincher Disc Centerlock Front Hub: Part of wheelset - Vision Team 35 Clincher Disc Centerlock Rear Hub: Part of wheelest - Vision Team 35 Clincher Disc Centerlock
- Speeds: 24
- Front Derailleur: Shimano 105 Di2
- Rear Derailleur: Shimano 105 Di2
- Shift Levers: Front: Shimano 105 Disc Di2, Rear: Shimano 105 Disc Di2
- Chain: Shimano M6100-12
- Cassette: Shimano 105 R7101; 11-34 teeth; 12 speed
- Chainset: Shimano 105 R7100; 50-34 tooth chainset; Crank length: XXXS - 160mm, (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
- Bottom Bracket: Shimano SM-BB71-41B; Pressfit 86.5
- Pedals: Not included
- Saddle: Merida Expert SL; 6% recycled and 23% nature material; V-mount; incl. Merida minitool
- Seat Post: Merida Expert SL; 27.2mm diameter; in-line; material: carbon
